Discovering the Twitter API through a Raspberry Pi Project.

For quite some time, I’ve been curious about the Twitter API and its potential applications. Finally, I decided to spend a weekend exploring this technology and embarked on a fun DIY project that combines my interest in programming, photography, and Raspberry Pi.

Raspberry Pi Twitter Bot

The project’s goal was to create a Twitter bot that runs on a Raspberry Pi, specifically using a Pi Zero and a Picamera. The bot would be set up to take photos of the picturesque Richmond Riverside from my living room window and tweet the images for the world to enjoy. To add a touch of interactivity, I wanted the bot to capture images every three hours between 8 am and 5 pm, and also allow users to request live photos by simply mentioning a specific keyword in their tweets.

This blog post will guide you through the process of setting up the Raspberry Pi, creating a Twitter Developer account, coding the bot in Python, designing a 3D printed case for the hardware, and finally, showcasing the end result. By the end of this post, you’ll have all the information you need to create your very own Raspberry Pi-powered Twitter bot.

Setting Up the Raspberry Pi

Initially, I started this project using a Raspberry Pi 3b+ I had lying around. However, I soon realized that the smaller form factor of an older Raspberry Pi Zero I had previously used for a Pwnagotchi project would be better suited for this task. So, I repurposed the Pi Zero to reduce the overall size of the setup.

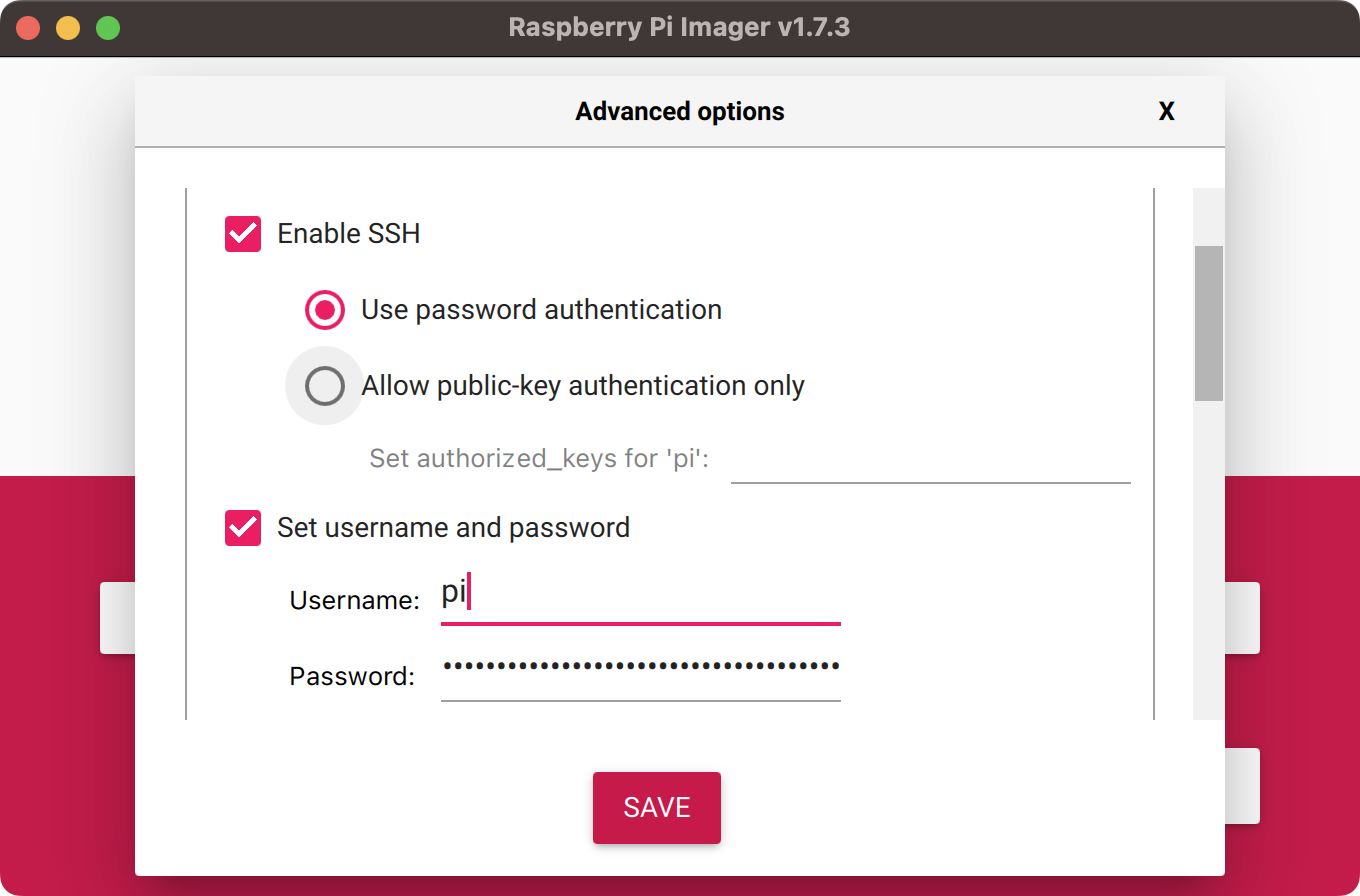

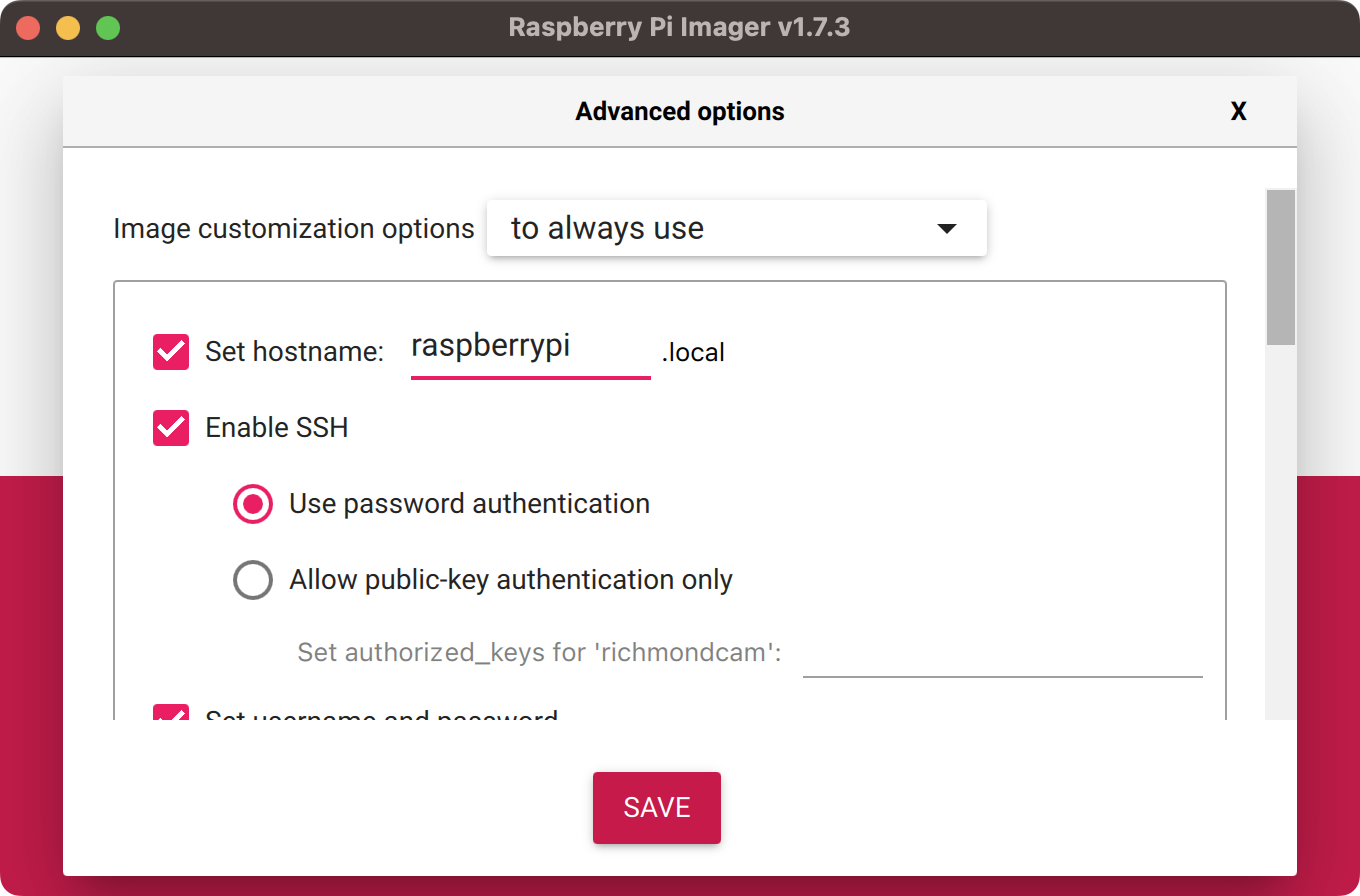

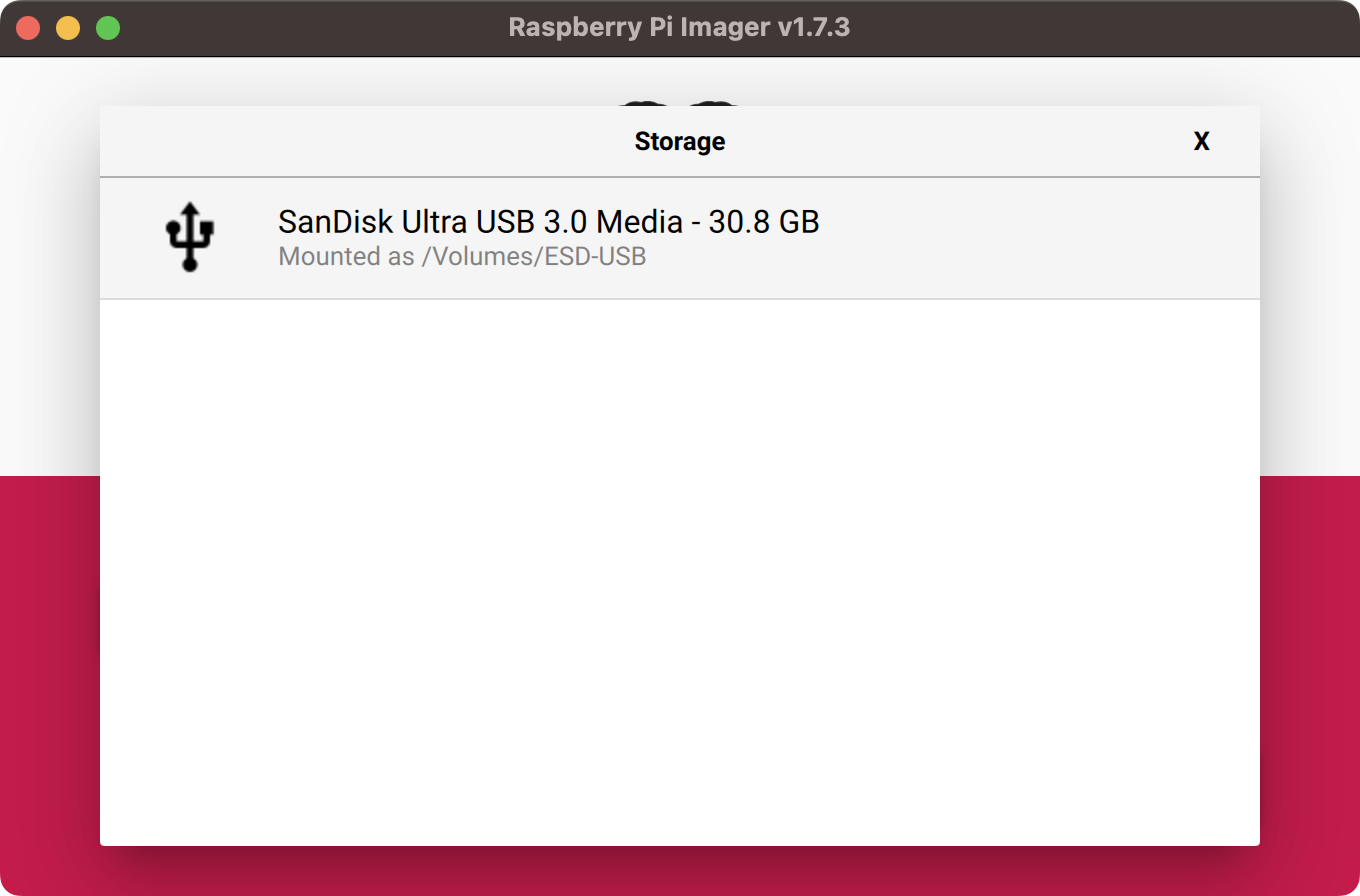

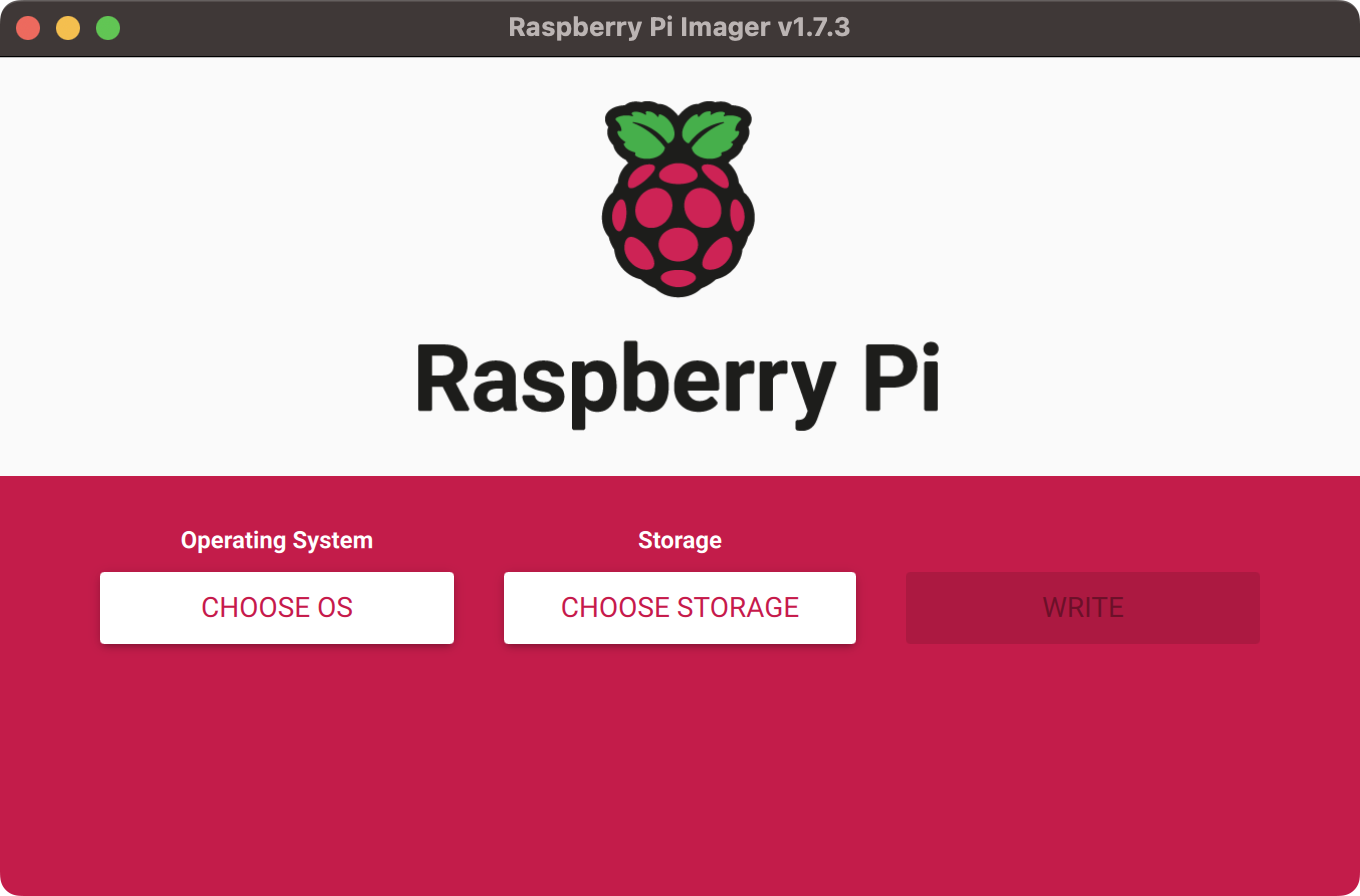

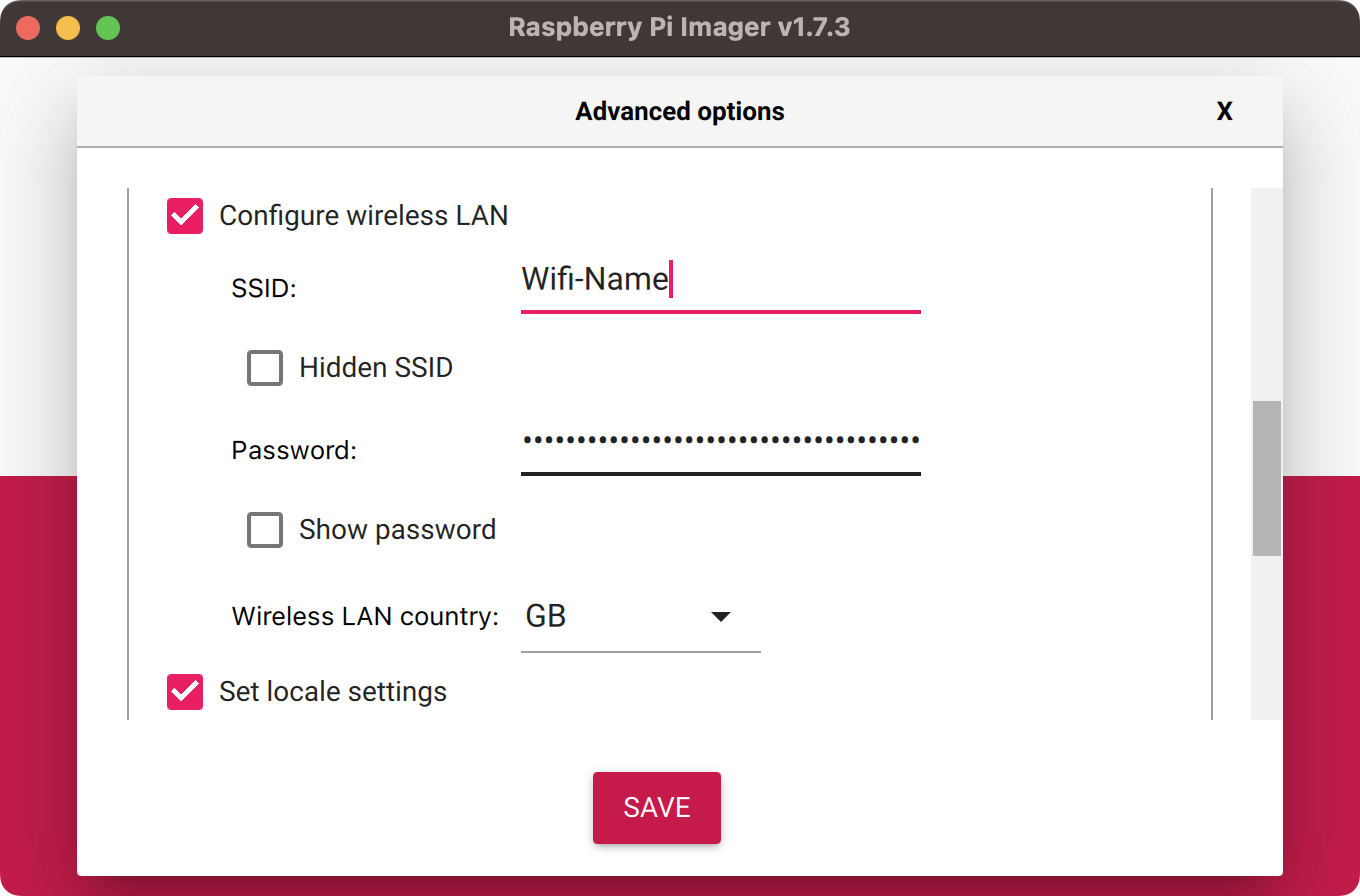

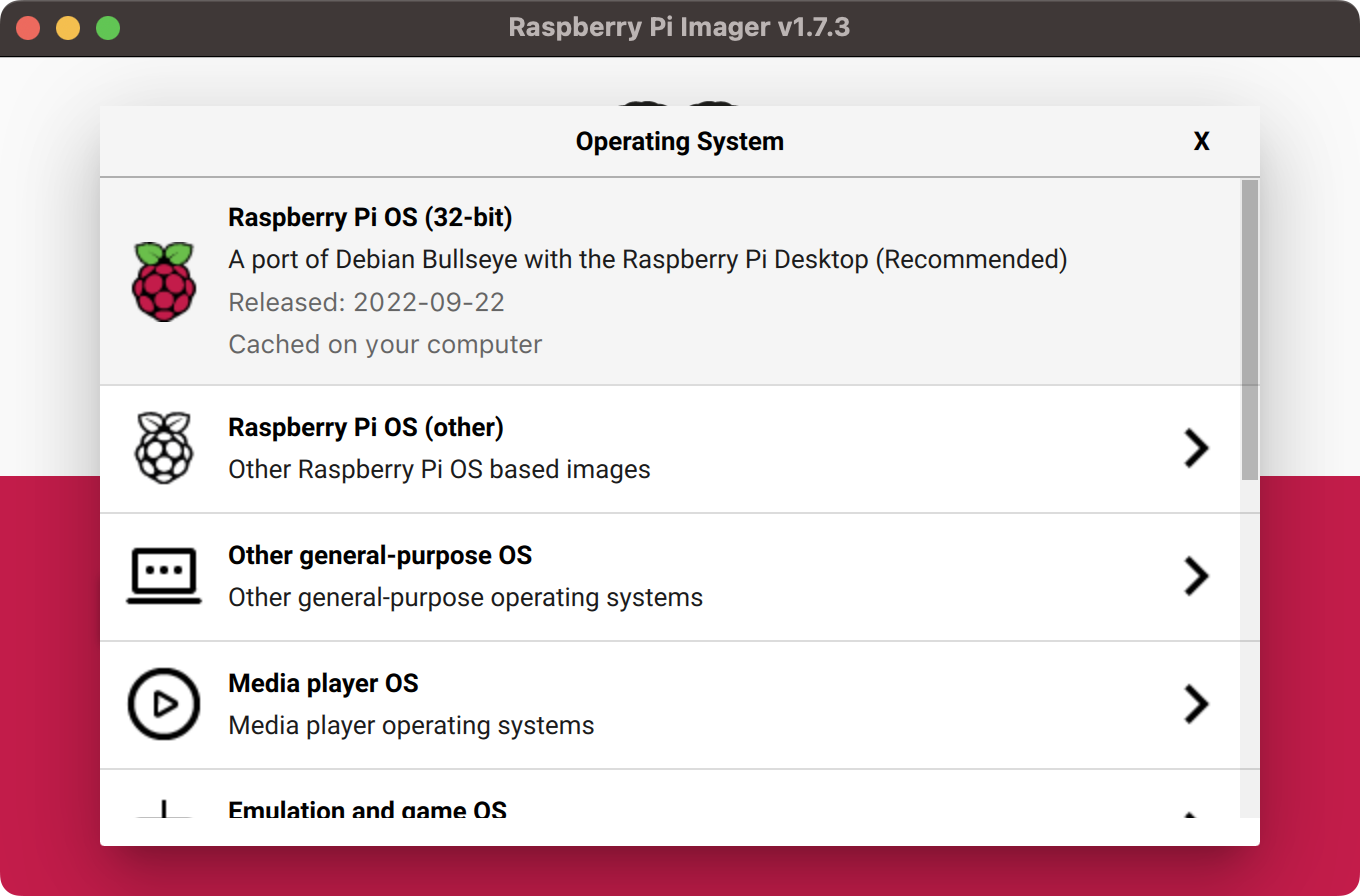

To install the Raspberry Pi OS on your device, I recommend following the official guide provided by RaspberryPi.com. During the installation, it’s essential to preconfigure the OS to connect to your Wi-Fi network and enable SSH connections. This will allow you to run the Pi Zero headless, which means you won’t need a keyboard, mouse, or monitor connected to the device

While setting up the Wi-Fi connection, I encountered an issue where the Pi Zero wouldn’t connect to my 5.0 GHz network. After some investigation, I found that the Pi Zero only works with 2.4 GHz Wi-Fi networks. So, if you run into a similar problem, make sure your device is set to connect to a compatible network.

Once the OS has been written to the SD Card, insert it into the Raspberry Pi and power it on. Give the system a few seconds to fully boot up, and you should be able to SSH into it using the login details you chose during the setup process. From there, you’re ready to start programming your Twitter bot!


Obtaining a Twitter Developer Account for API Access

To interact with the Twitter API and create a bot, you will first need a Twitter Developer account. I recommend applying for an account with Elevated access, as this will make the authentication process smoother when working with the V1 API. To request Elevated access, you will need to answer a few questions about your intended use of the API. The approval process usually takes about 48 hours.

Once your Developer account is approved, you will be provided with a set of important details that you should note down for future reference. These include the API Key, API Secret, Bearer Token, Access Token, Access Token Secret, Client ID, and Client Secret. You will need this information to authenticate and interact with the Twitter API when coding your Raspberry Pi-powered Twitter bot.

Coding the Twitter Bot with Python

To build the Twitter bot, you will need to use two essential Python packages: Schedule and Tweepy . Schedule allows you to automate the process of triggering image capture functions throughout the day, while Tweepy enables seamless interaction with the Twitter API.

Before diving into the code, I want to emphasize that I am not a Python expert. The code I’ve written may not be the most efficient or elegant solution, but it gets the job done and achieves the desired functionality for this project.

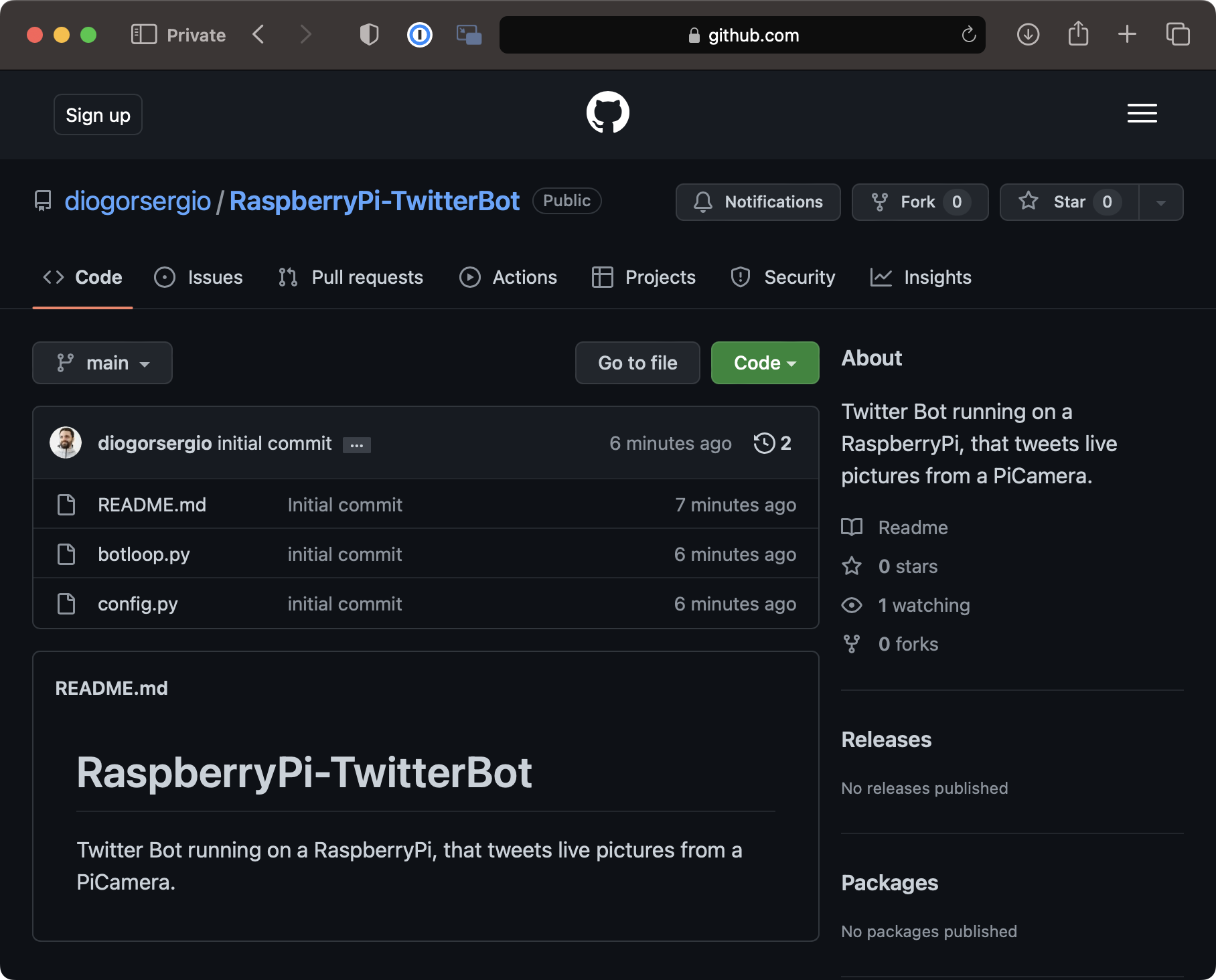

You can find the complete source code for this Raspberry Pi Twitter bot on my Github repository: diogorsergio/RaspberryPi-TwitterBot . The code provides a solid foundation for you to build upon and customize according to your specific needs or ideas. Feel free to explore the repository and make any adjustments you see fit to create your own unique Twitter bot experience.

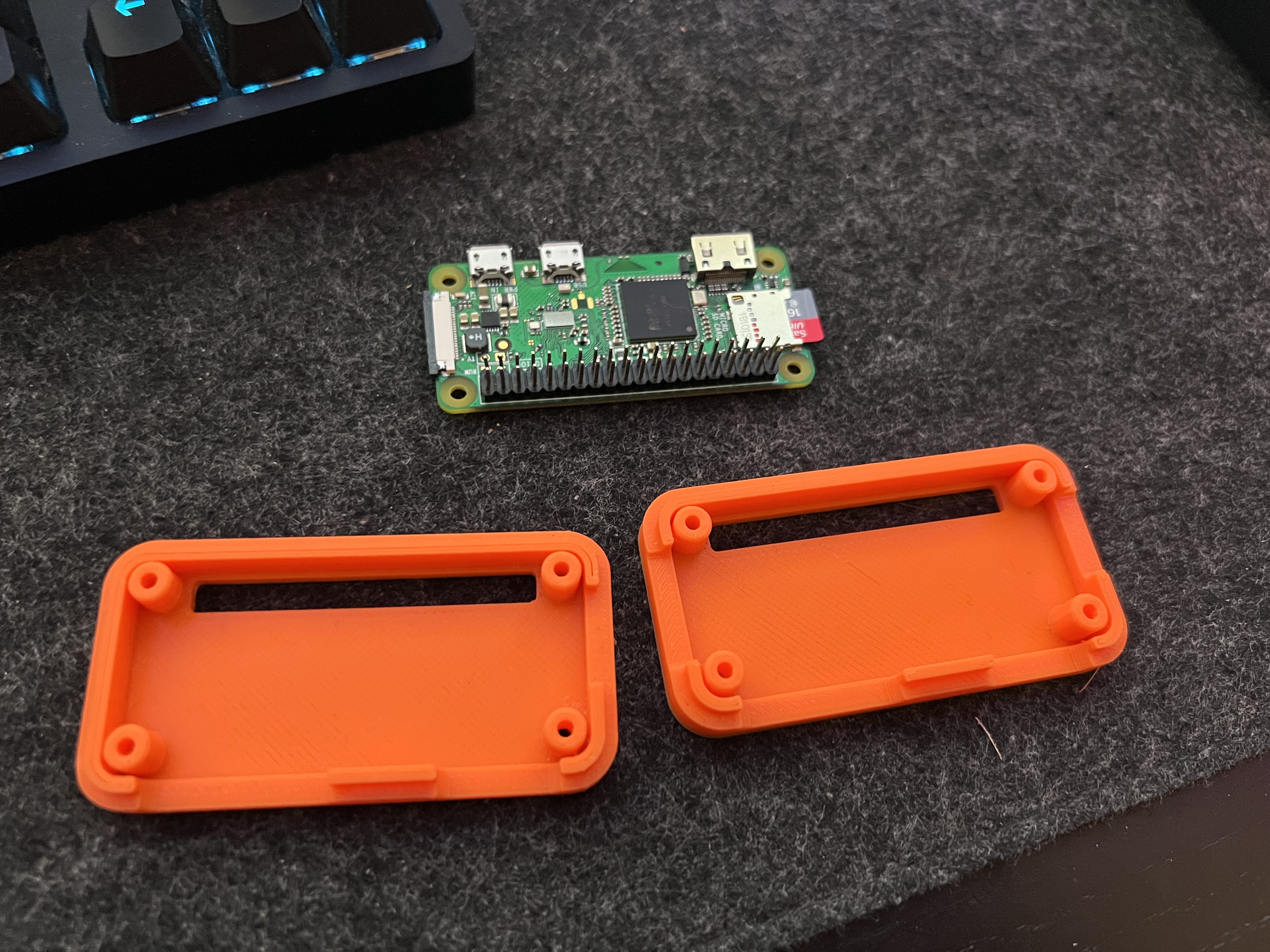

Designing and Printing a 3D Case for the Raspberry Pi and Picamera

So, I wanted to give my Raspberry Pi and Picamera setup a cool and tidy look, as well as protect the hardware components. To achieve this, I decided to design a custom 3D case that would not only look great but also keep everything safe and secure.

I fired up Autodesk Fusion 360 and got to work on creating the perfect design to fit the Raspberry Pi Zero and Picamera snugly. Of course, I made sure to include openings for the camera lens, power supply, and any other connections we’d need.

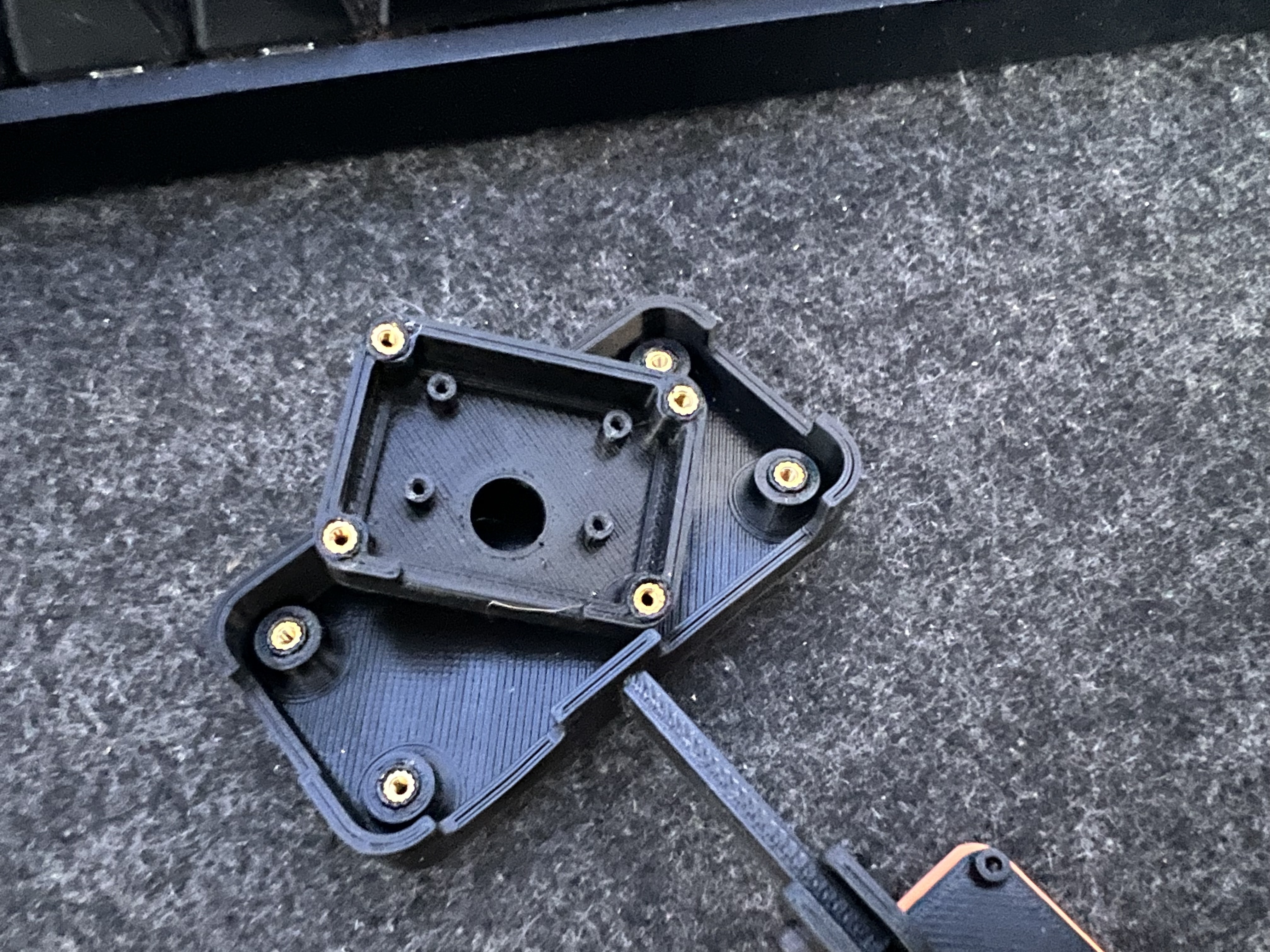

With the design all set, it was time to bring it to life! I used my trusty Prusa i3 MK2S 3D printer and chose a suitable filament material to print the case. Once the printing was done, it was time for the big reveal.

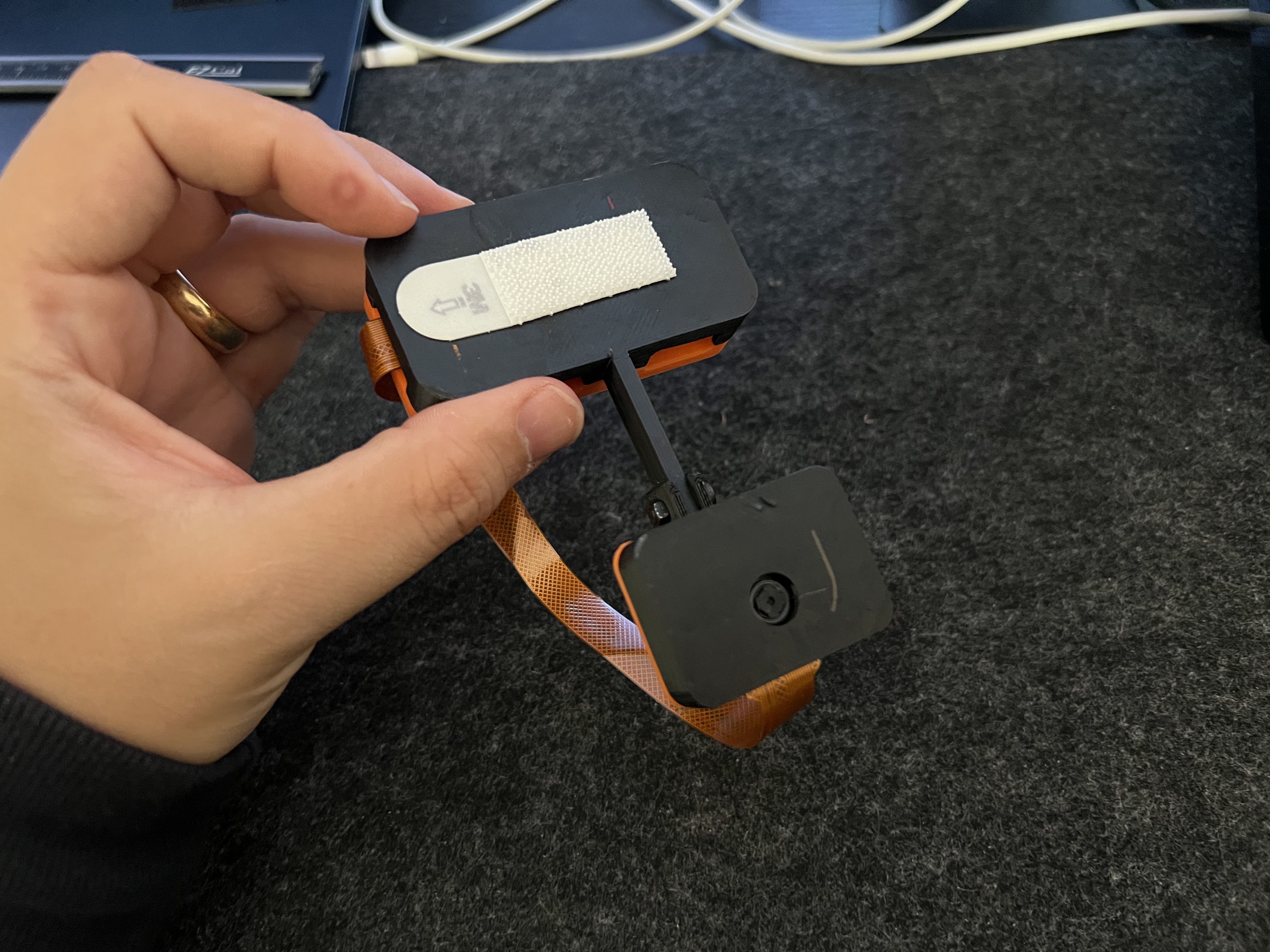

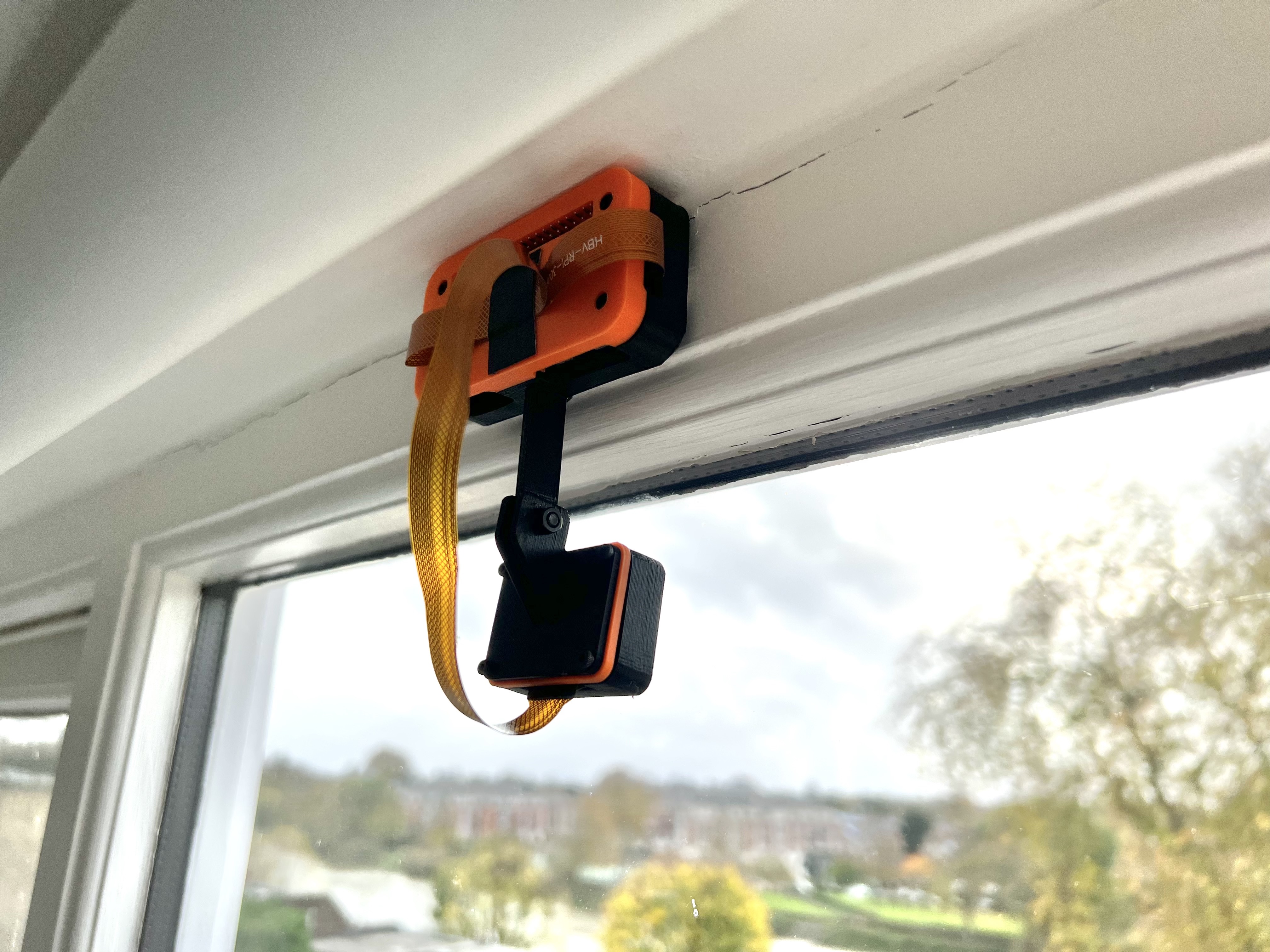

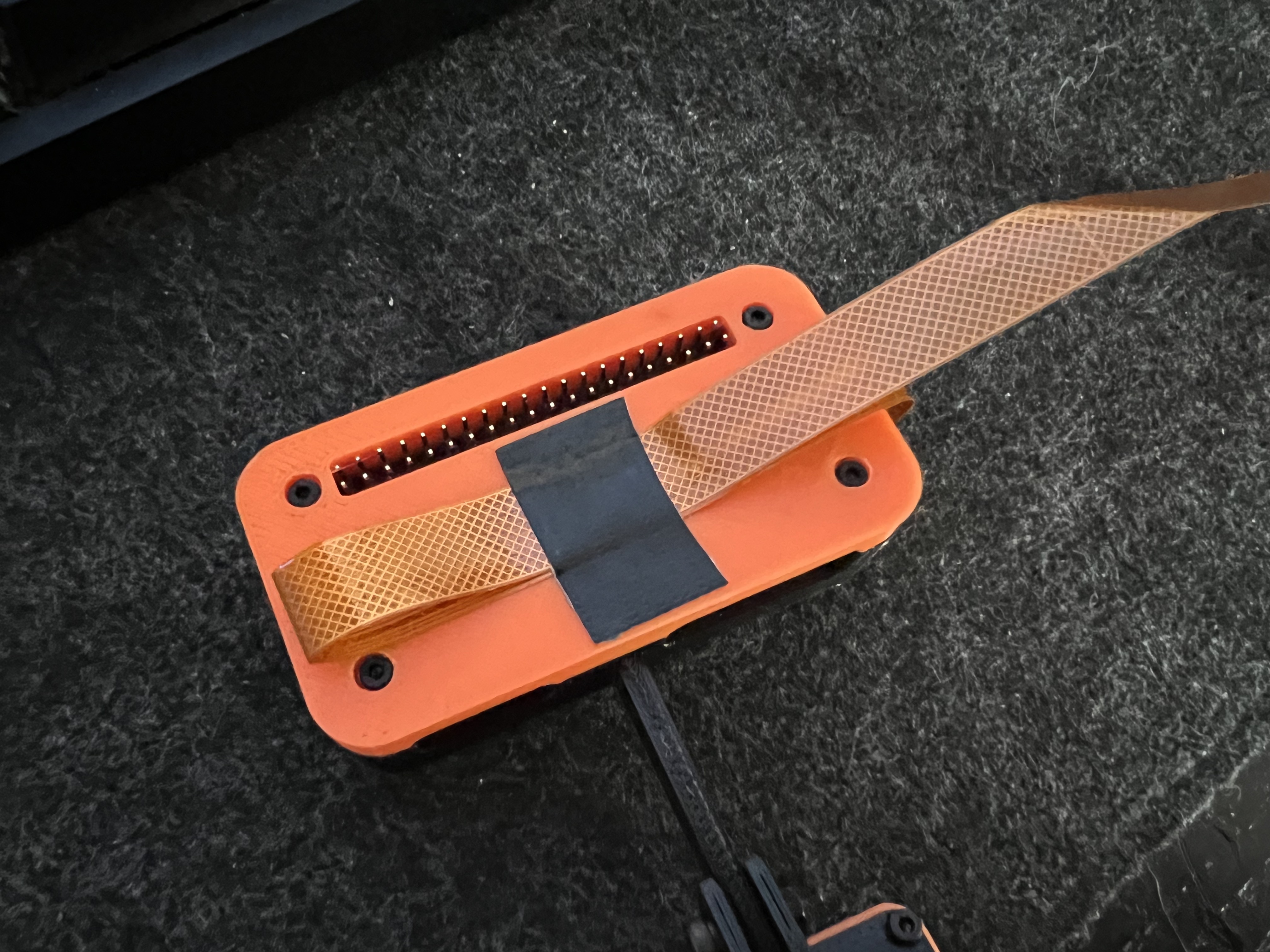

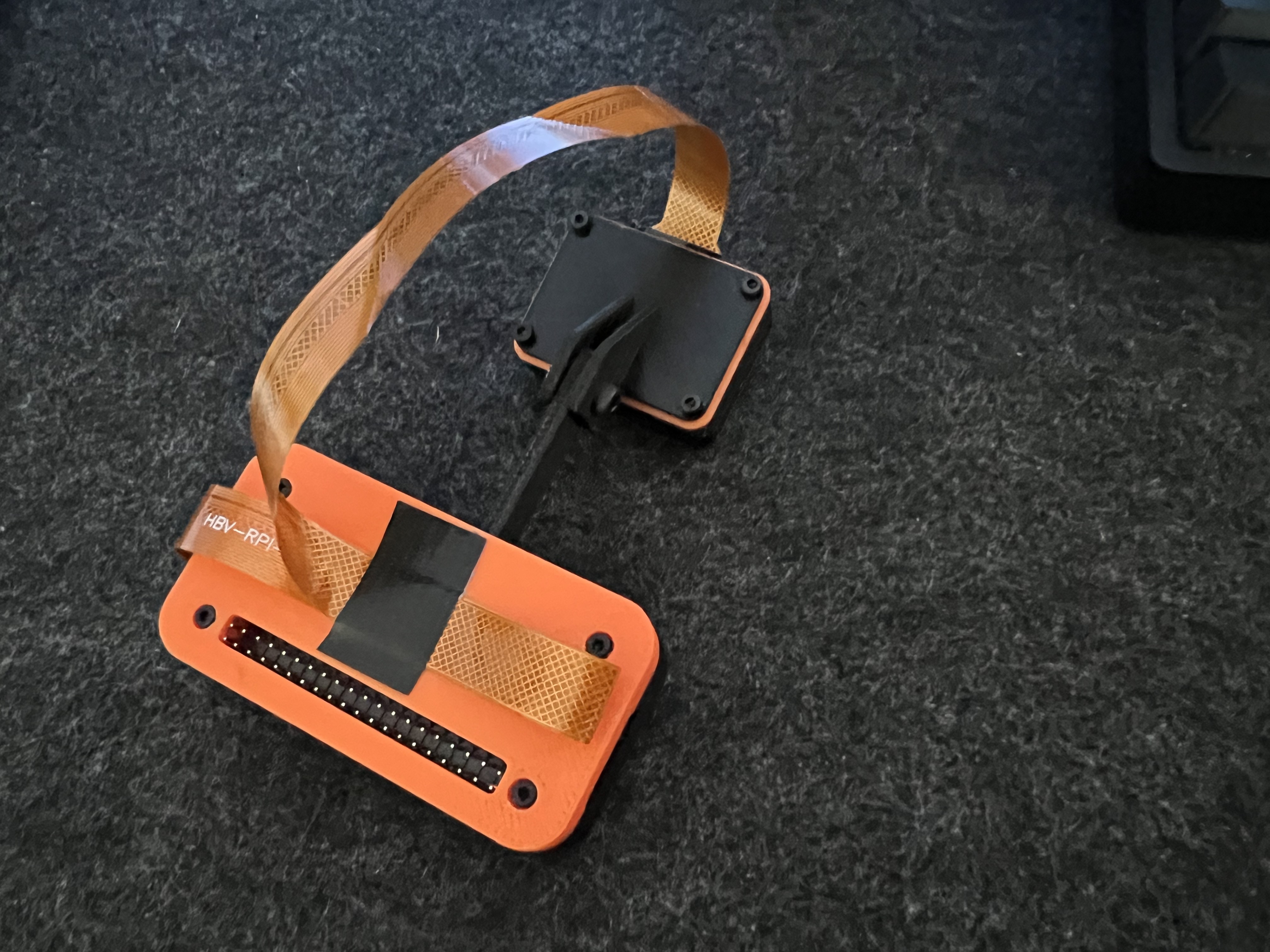

I carefully placed the Raspberry Pi and Picamera inside their new home and secured them in position. The final result? A super cool, compact, and protected setup that not only does the job but looks awesome doing it.


The Final Result

And there you have it! With all the components set up, the Raspberry Pi Twitter bot sprang into action, snapping pictures of the lovely Richmond Riverside and tweeting them for everyone to see. The best part is that users can join in the fun by tweeting a specific keyword, prompting the bot to capture a live photo just for them.

Here’s a glimpse of the bot working its magic:
